Eaton Wiring Devices

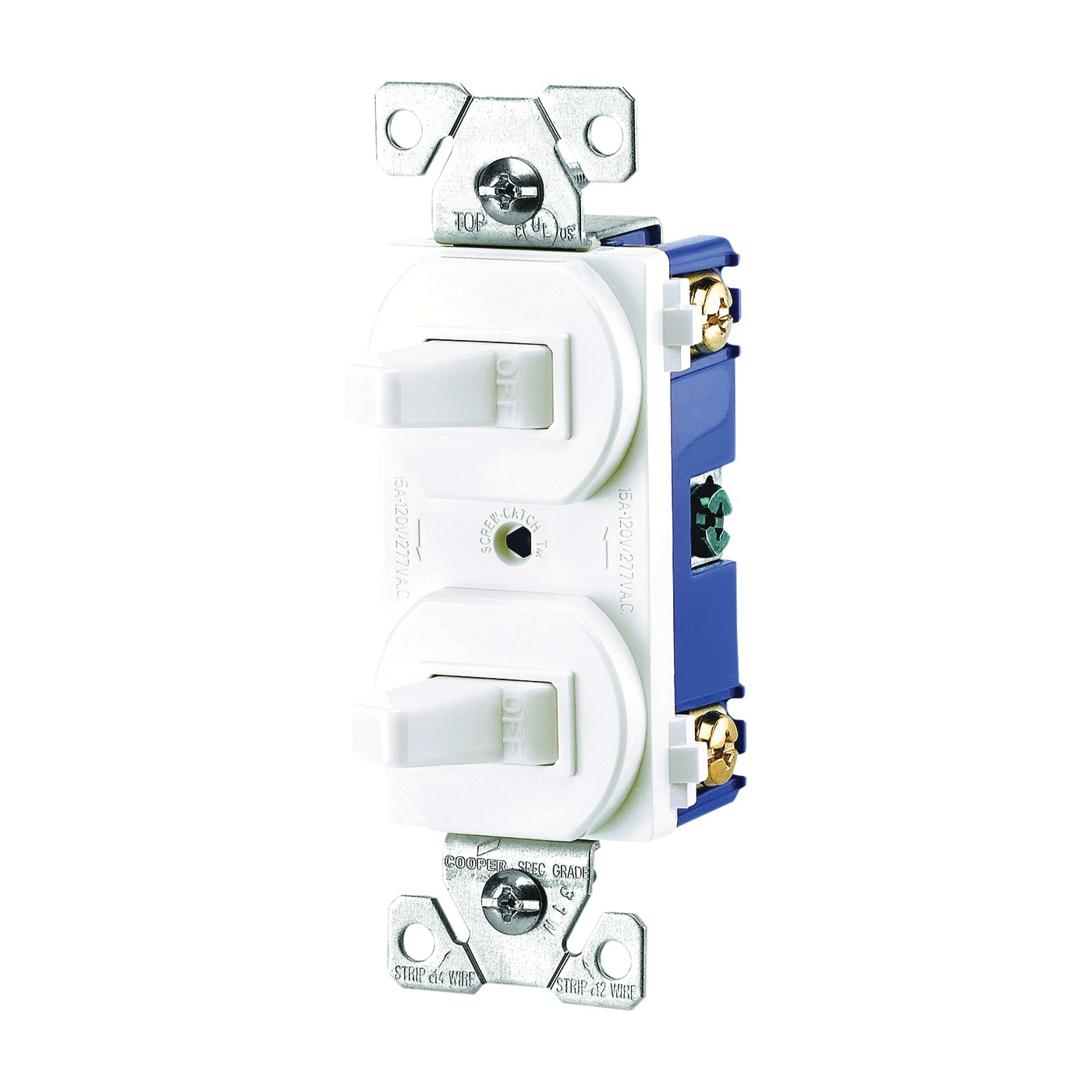

Eaton Wiring Devices 271W-BOX Combination Toggle Switch, 15 A, 120/277 V, SPDT, Screw Terminal, White
![Eaton Wiring Devices 271W-BOX Combination Toggle Switch, 15 A, 120/277 V, SPDT, Screw Terminal, White](https://assets.unilogcorp.com/187/ITEM/IMG/6971113.jpg)
- Actuator Type: Toggle
- Color: White
- Contact Configuration: SPDT
- Contact Material: Brass
- Current Rating: 15 A
- Model #: 271W-SP-L
- UPC #: 032664750311
- SKU: 1045882
Product Details
Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Break-off provision for wiring both devices on same circuit or on separate circuits. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Switches meet all UL 20 requirements. UL Listed.Item Specifications
Actuator Type | Toggle |
---|---|
Color | White |
Contact Configuration | SPDT |
Contact Material | Brass |
Current Rating | 15 A |
Dimensions | 4.19 in L x 1.3 in W x 1.08 in D |
Housing Material | Nylon |
Mounting Type | Strap |
---|---|
Number of Poles | 1 |
Switch Operation | Back and Side |
Temperature Rating | -20 to 60 deg C |
Terminal Type | Screw |
Voltage Rating | 120/277 V |
MORE DETAILS:
- Eaton_Cooper_Wiring_100016684_Catalog.pdf
- Application: For fluorescent lighting fixtures typical in commercial applications
