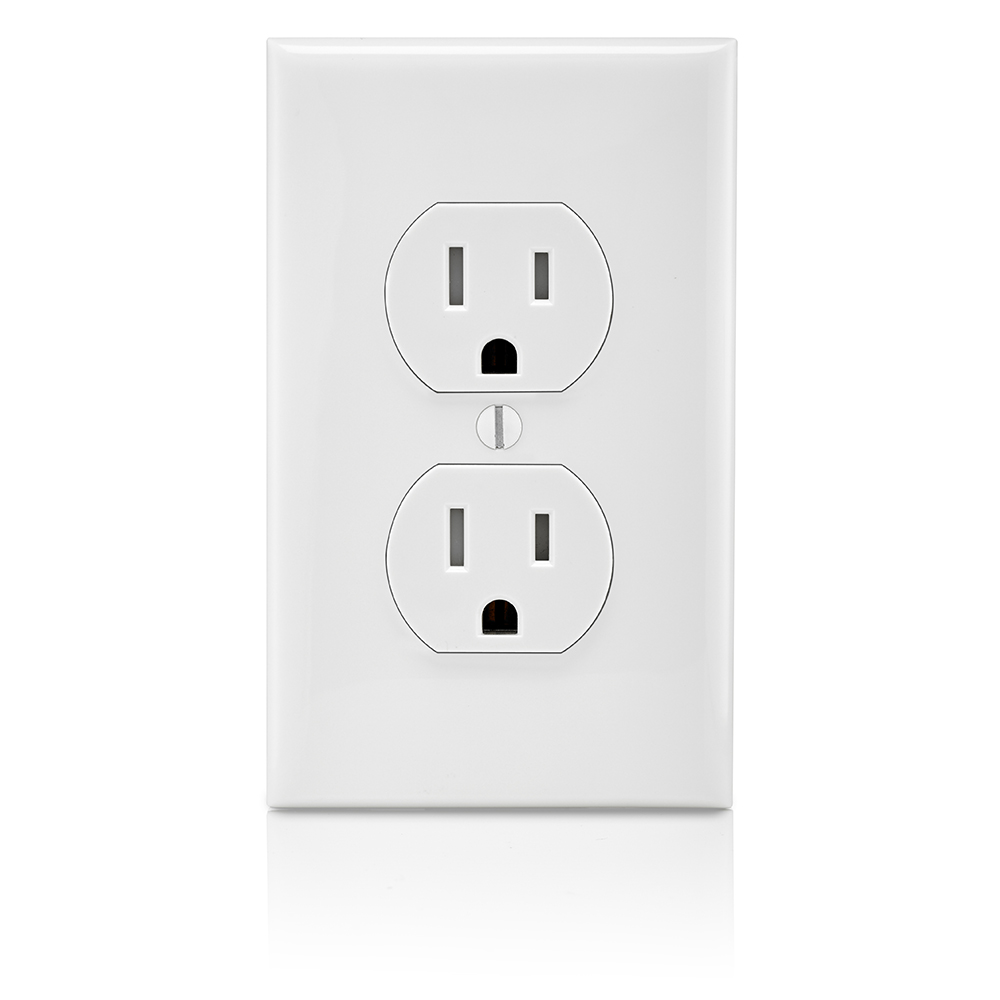

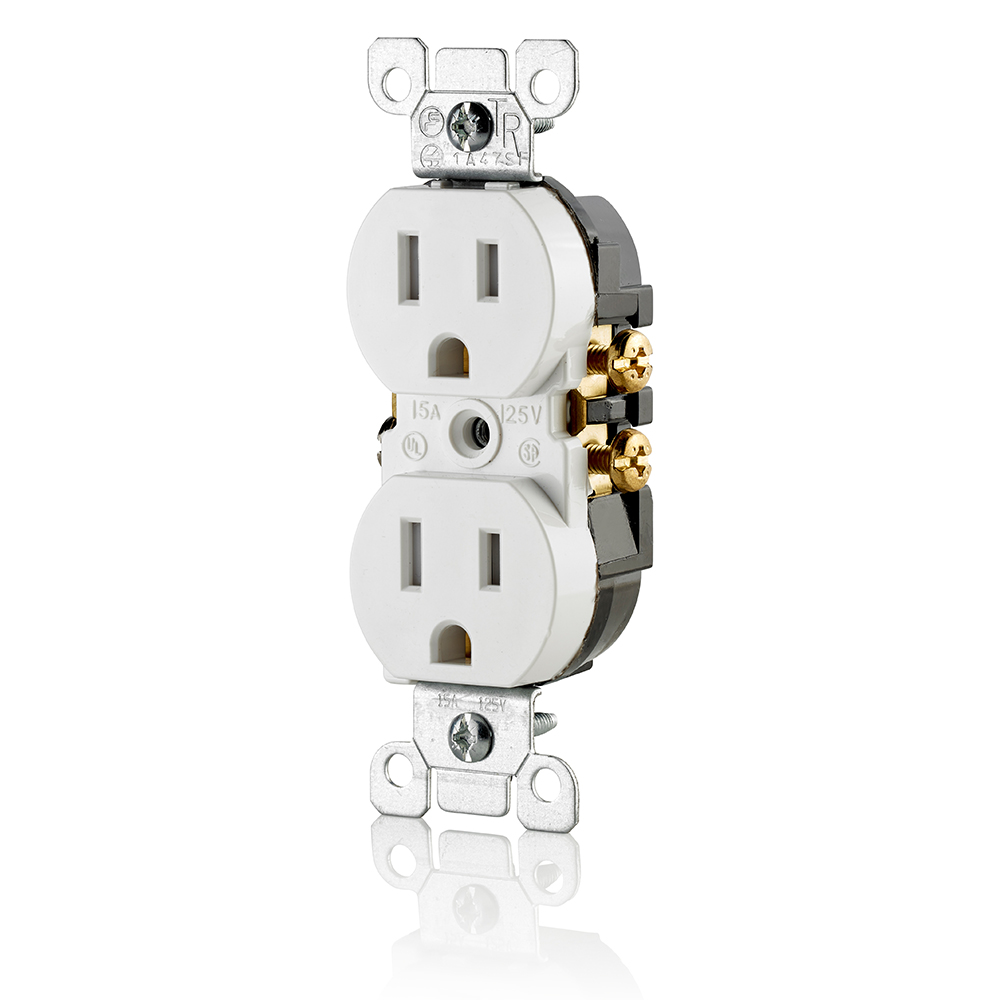

Eaton TR270W Duplex Receptacle, 2-Pole, 15 A, 125 V, Push, Side Wiring, NEMA: 5-15R, White
- Color: White
- Current Rating: 15 A
- Dimensions: 1.24 in L x 0.79 in W x 4 in H
- Frequency Rating: 60 Hz
- Material: Thermoplastic
- Model #: TR270W
- UPC #: 032664666537
- SKU: 1175707
Product Details
Receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready-to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.Key Features
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 40612 that states that all 15 A and 20 A
- TR designation provides visual identification
- Longer, wider strap provides 40% more contact area to wallboard
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High-impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long term ground retention
- Easy access split circuit break off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
Item Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Dimensions | 1.24 in L x 0.79 in W x 4 in H |
| Frequency Rating | 60 Hz |
| Material | Thermoplastic |
| Mounting Type | Flush |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Push, Side |
MORE DETAILS:
- Eaton_100002984_Catalog.pdf
- EATON_101851615_Specification_Sheet.pdf
- Eaton_Wiring_Devices_100002984_Catalog.pdf
- Application: For new residential construction remodel/retrofit residential construction, apartment buildings condominiums and townhouses hotels, motels, inns and suites with kitchenettes retirement communities, nursing homes and assisted living facilities
