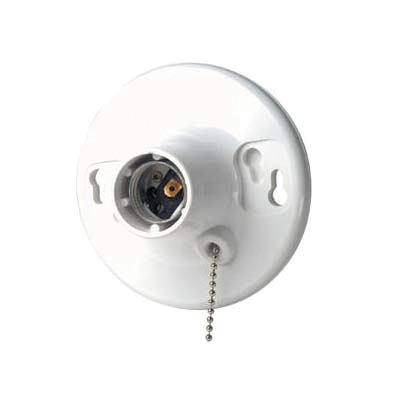

Eaton Wiring Devices S759W-CD Lamp Holder, 250 V, 250 W, Plastic Housing Material, White
- Base Type: Medium
- Color: White
- Housing Material: Plastic
- Mounting Type: Box
- Voltage Rating: 250 V
- Model #: 8827-CW4
- UPC #: 078477103128
- SKU: 1029399
Product Details
Plastic Ceiling lamp holders - pull chain molded of high-temperature, thermoset plastic to reduce breakage. Mounts on 4 in (101.6 mm) outlet boxes with breakout for 3-1/4 in (82.55 mm) box mounting. Leads are 6 in (152.4 mm) 105 deg C insulated stranded #16, stripped 3/4 in (19.05 mm). Pull chain devices include ball chain, 3 ft (0.91 m) of cord, connector and endbell. Top wire versions have terminal screws backed out - ready for wiring - without removing interior. Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring. Sockets available in two piece version to permit interior replacement, dust ring protects against plaster and dirt. Shade grooves provided on two piece units.Item Specifications
| Base Type | Medium |
|---|---|
| Color | White |
| Housing Material | Plastic |
| Mounting Type | Box |
| Voltage Rating | 250 V |
|---|---|
| Wattage Rating | 250 W |
| Wiring Type | Top |
