![Bussmann BP/ABC-15 Fuse, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, Ceramic Body, G](https://assets.unilogcorp.com/187/ITEM/IMG/6417638.jpg)
Bussmann

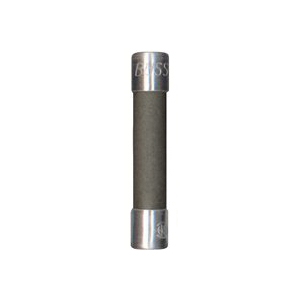

Bussmann BP/ABC-15 Fuse, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, Ceramic Body, G
![Bussmann BP/ABC-15 Fuse, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, Ceramic Body, G](https://assets.unilogcorp.com/187/ITEM/IMG/6417638.jpg)
- Body Material: Ceramic
- Contact Material: Brass
- Current Rating: 15 A
- Diameter: 1/4 in
- Element Type: Single
- Model #: BP/ABC-15
- UPC #: 051712161046
- SKU: 1174744
Product Details
Ceramic tube construction, for use in microwave ovens. 1/4 in x 1-1/4 in physical size, CSA certified, UL listed.Item Specifications
Body Material | Ceramic |
---|---|
Contact Material | Brass |
Current Rating | 15 A |
Diameter | 1/4 in |
Element Type | Single |
Fuse Group | G |
Fuse Type | Electronic Miniature, Fast Acting |
Interrupt Rating | 750 A, 10 kA |
---|---|
Length | 1-1/4 in |
Rejection/Non-Rejection | Non-Rejection |
Resistance | 0.00553 Ohm |
Terminal Type | Ferrule |
Voltage Rating | 250 VAC, 125 VDC |
MORE DETAILS:
- Bussmann_100033159_Specification_Sheet.pdf
- Bussmann_100000362_Catalog.pdf
- Application: For microwave
