Schlage

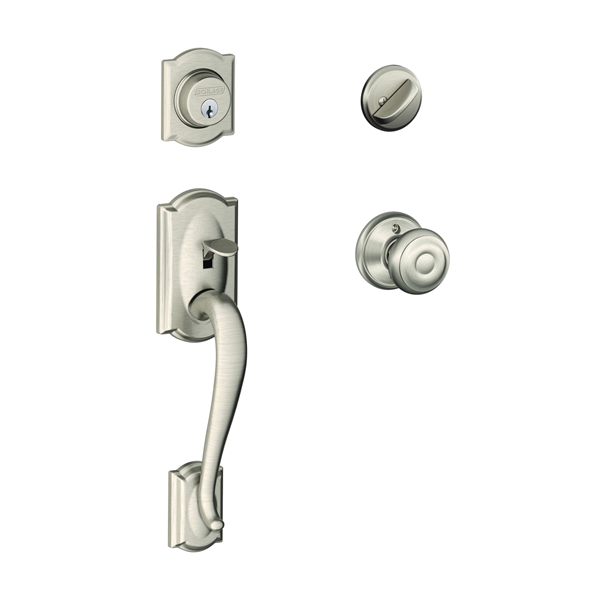

Schlage Camelot Series F60VCAM/GEO619 Combination Lockset, Mechanical Lock, Knob Handle, Round Design, Satin Nickel
- Backset Size: 2-3/8, 2-3/4 in
- Backset Type: Adjustable
- Bolt Throw Size: 1 in
- Bolt Type: Mechanical
- Center to Center: 5-1/2 in
- Model #: F60VCAM/GEO619
- UPC #: 043156171545
- SKU: 1175438
Product Details
Camelot handleset with single cylinder deadbolt and Georgian knob in satin nickel.Item Specifications
| Backset Size | 2-3/8, 2-3/4 in |
|---|---|
| Backset Type | Adjustable |
| Bolt Throw Size | 1 in |
| Bolt Type | Mechanical |
| Center to Center | 5-1/2 in |
| Commercial/Residential | Residential |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin Standard Cylinder |
| Deadbolt Latch Throw | 1 in |
| Design | Round |
| Door Thickness | 1-3/8 to 1-7/8 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Finish | Satin Nickel |
| Grip Center to Center | 8-3/8 to 9-7/8 in |
| Handle Type | Knob |
|---|---|
| Includes | Mounting Hardware |
| Interior Locking | Yes |
| Keyway Type | C |
| Latch Housing Diameter | 7/8 in |
| Latch Type | Deadbolt Latch, Spring Latch |
| Lock Type | Mechanical |
| Material | Metal |
| Number of Cylinders | 1 |
| Overall Height | 18.06 in |
| Projection Size | 1/2, 1 in |
| Re-Key Technology | Traditional |
| Security Grade | 1 |
| Strike Size | 1.13 x 2.75 in |
| Strike Type | Full Lip Square Corner |
MORE DETAILS:
- Application: For residential single and multi-family doors
