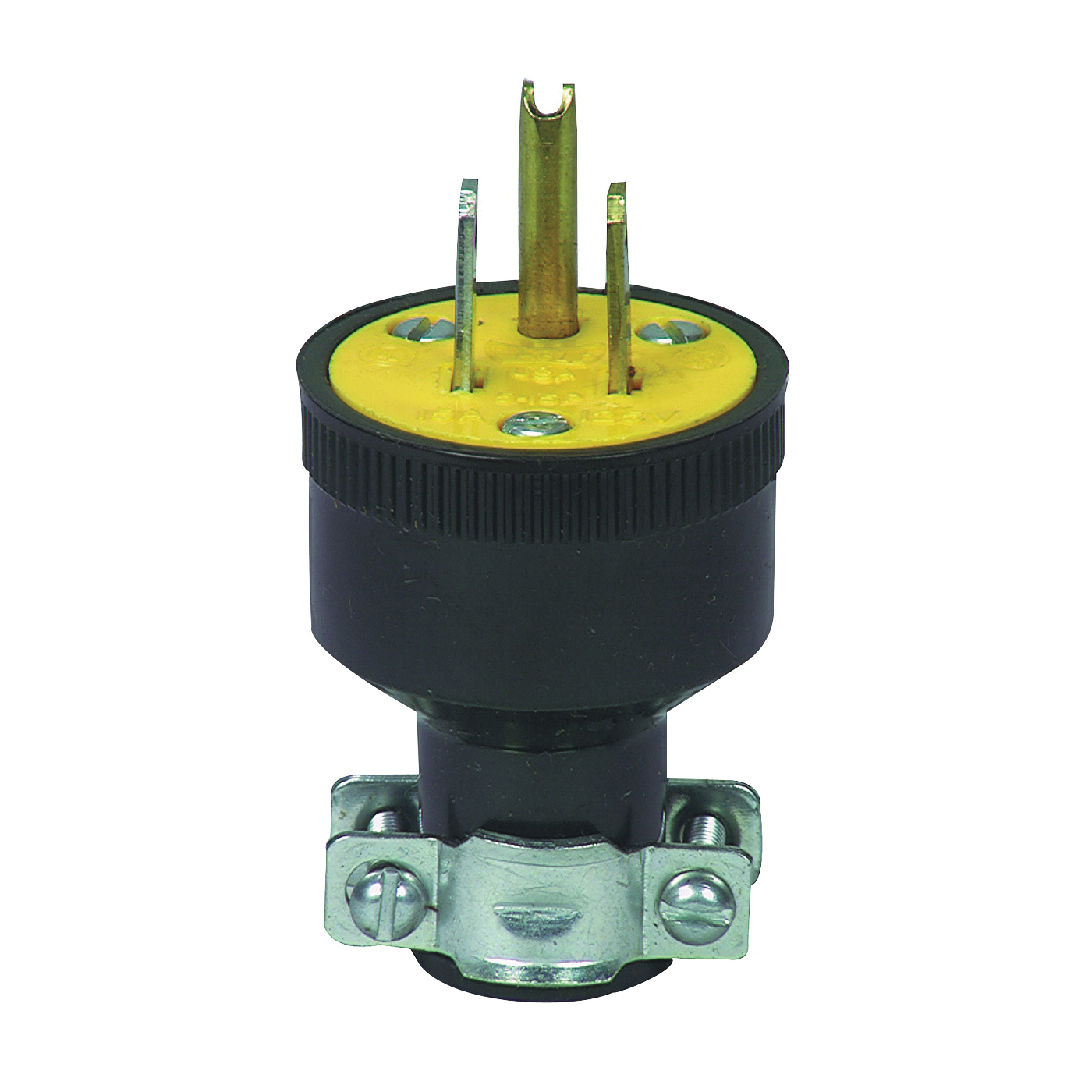

Eaton Wiring Devices 1709-BOX Electrical Plug, Straight Blade, 1/4 to 39/64 in, 2-Pole, 15 A, 125 V, NEMA: NEMA 5-15

Eaton Wiring Devices

Cable/Wire Size: 1/4 to 39/64 in
Color: Black
Current Rating: 15 A
Dimensions: 2 in L x 1.54 in W
Material: Thermoplastic
Model #: 1709-BOX
UPC #: 032664480706
SKU: 1114138

Availability

Product Details

Meets all UL 498 requirements. Solid brass straight plug blades. Combination slot/Phillips head mounting and terminal screws. Temperature rating of -20 to 60 deg C. 15 A, 125 V. 1/4 to 39/64 in cord diameter. UL listed, CSA Certified. NEMA 5-15P.

Item Specifications

Cable/Wire Size	1/4 to 39/64 in
Color	Black
Current Rating	15 A
Dimensions	2 in L x 1.54 in W
Material	Thermoplastic
Mounting Type	Screw

NEMA Configuration	NEMA 5-15
Number of Poles	2
Number of Wires	3
Operating Temperature	-20 to 60 deg C
Type	Straight Blade
Voltage Rating	125 V

MORE DETAILS:

Eaton_Wiring_Devices_100030207_Catalog.pdf

WARNING: California Residents see Prop 65 Warnings
