National Hardware

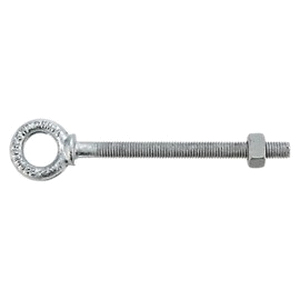

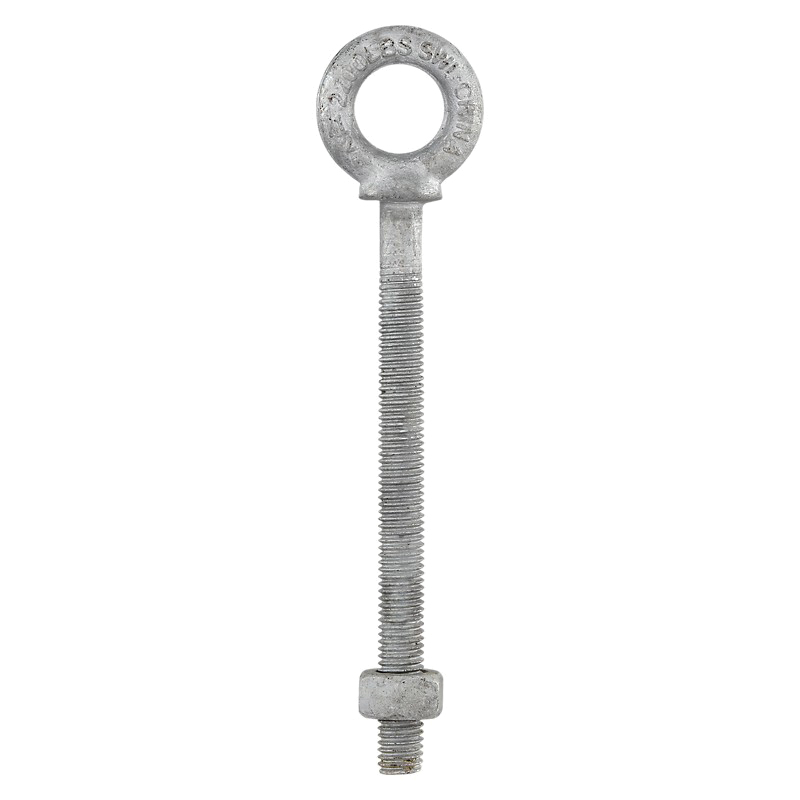

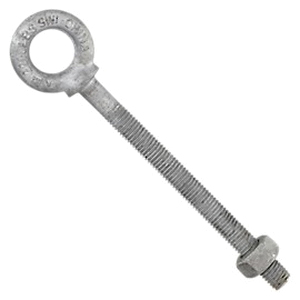

National Hardware N245-167 Eye Bolt, 1/2-13 Thread, Coarse Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye
- Eye Diameter: 1 in ID x 1-3/4 in OD
- Finish: Galvanized
- Includes: Hex Nuts
- Material: Steel
- Overall Length: 7-29/32 in
- Model #: N245-167
- UPC #: 038613245167
- SKU: 1005930
Product Details
General-purpose eye bolt used where high-strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for great strength. Galvanized for corrosion-resistance. With hex nut.Key Features
- National Hardware 1/2 x 6 in eye bolt is designed to firmly attach a securing eye to a structure for rope or cable ties
- Manufactured from forged steel for durability
- Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts
- Coated with WeatherGuard™ protection to withstand harsh weather conditions and prevent corrosion
Item Specifications
| Eye Diameter | 1 in ID x 1-3/4 in OD |
|---|---|
| Finish | Galvanized |
| Includes | Hex Nuts |
| Material | Steel |
| Overall Length | 7-29/32 in |
| Shank Diameter | 1/2 in |
| Shank Length | 6 in |
|---|---|
| Thread Length | 5-7/8 in |
| Thread Size | 1/2-13 |
| Thread Type | Coarse |
| TPI/Pitch | 13 |
| Working Load Limit | 2200 lb |
MORE DETAILS:
- National_Hardware_100009834_Line_Drawing.pdf
- Application: For interior and exterior applications
- Warranty: Limited Lifetime
