Eaton Wiring Devices

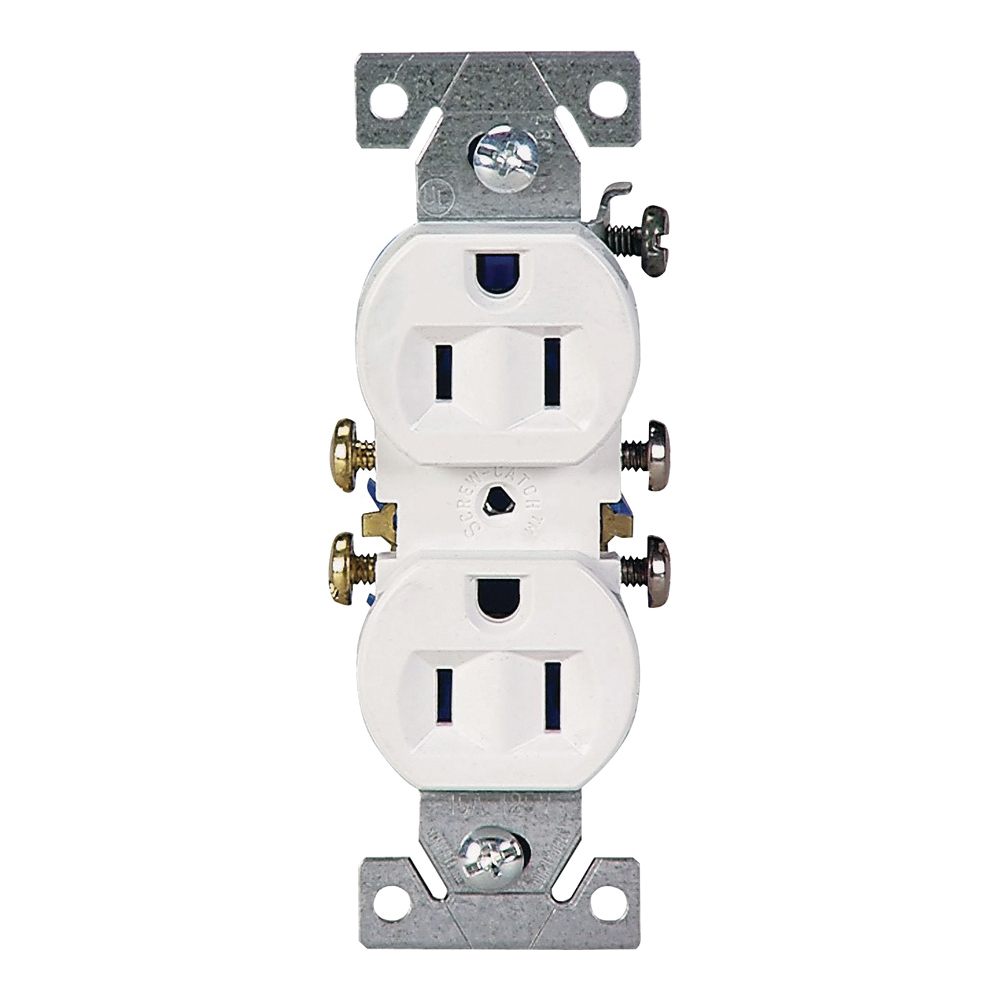

Eaton Wiring Devices 270W Duplex Receptacle, PVC, White, 2-Pole, 15 A, 125 V, Push-in, Side Wiring, NEMA: 5-15R, 3-Wire
- Color: White
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.30 in W x 0.69 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Model #: 270W
- UPC #: 032664750830
- SKU: 1092619
Product Details
Standard duplex receptacles feature longer, wider straps providing 40% more contact area to the wallboard. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out - ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.Key Features
- Longer, wider strap provides 40% more contact area to wallboard
- Terminal screws backed out ready for wiring
- Side wire terminals accept up to #10 solid or stranded wire
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
Item Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.30 in W x 0.69 in D |
| Frequency Rating | 60 Hz |
| Material | PVC |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Push-in, Side |
