Bussmann

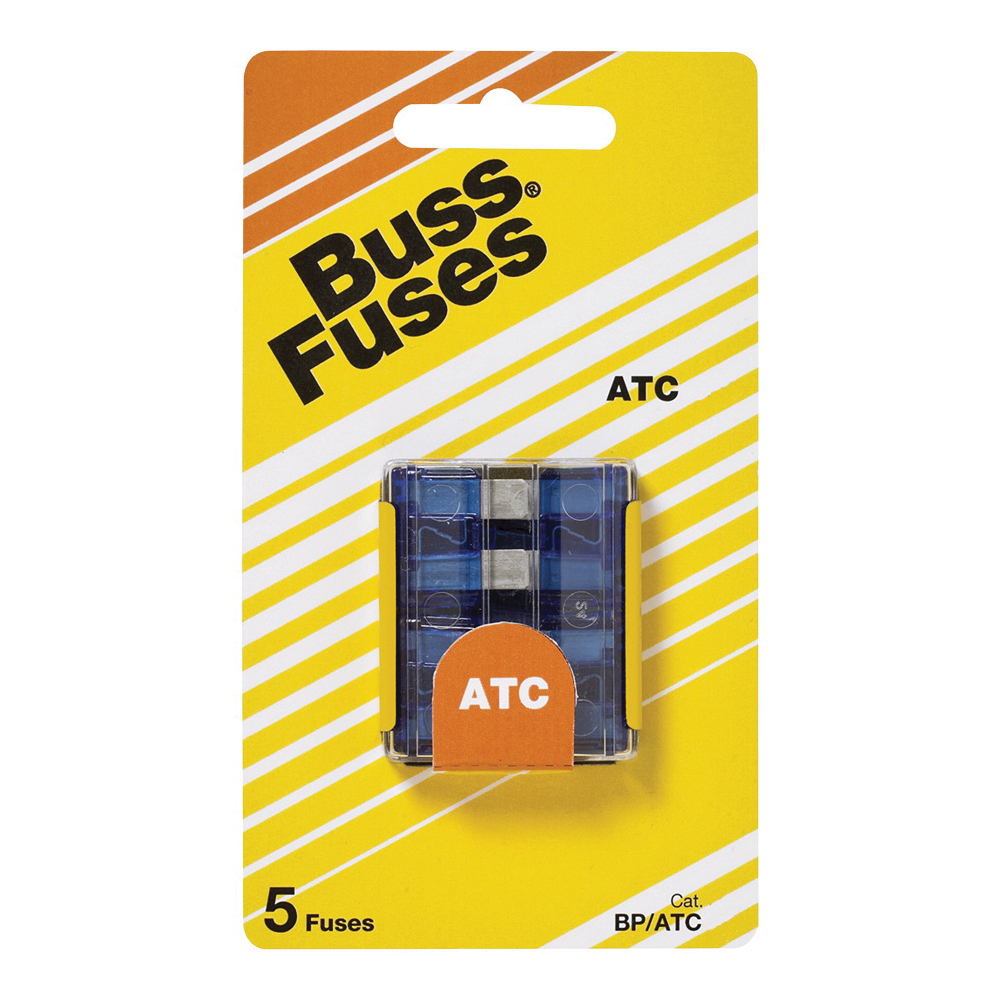

Bussmann BP/ATC-3-RP Automotive Fuse, Blade Fuse, 32 VDC, 3 A, 1 kA Interrupt
- Body Material: Plastic
- Color: Violet
- Contact Material: Zinc
- Current Rating: 3 A
- Element Type: Single
- Model #: BP/ATC-3-RP
- UPC #: 051712173216
- SKU: 1009749
Product Details
ATC blade fuses use the industry standard color-coding to indicate amp rating. Bussmann Series ATC fuses are UL recognized and feature an enclosed element for electrical isolation, corrosion resistance and longer service life.Key Features
- Industry standard color-coding for quick identification of amp rating
- Tin-plated zinc terminals for corrosion resistance and enhanced conductivity
- Lead and halogen-free
- Test points on specific part/package numbers may speed up circuit troubleshooting
Item Specifications
| Body Material | Plastic |
|---|---|
| Color | Violet |
| Contact Material | Zinc |
| Current Rating | 3 A |
| Element Type | Single |
| Fuse Type | Blade |
| Interrupt Rating | 1 kA |
|---|---|
| Length | 3/4 in |
| Operating Temperature | -40 to 100 deg C |
| Rejection/Non-Rejection | Non-Rejection |
| Voltage Rating | 32 VDC |
MORE DETAILS:
- Bussmann_100014841_Specification_Sheet.pdf
- Bussmann_100000642_Catalog.pdf
- Application: For most domestic and imported cars
