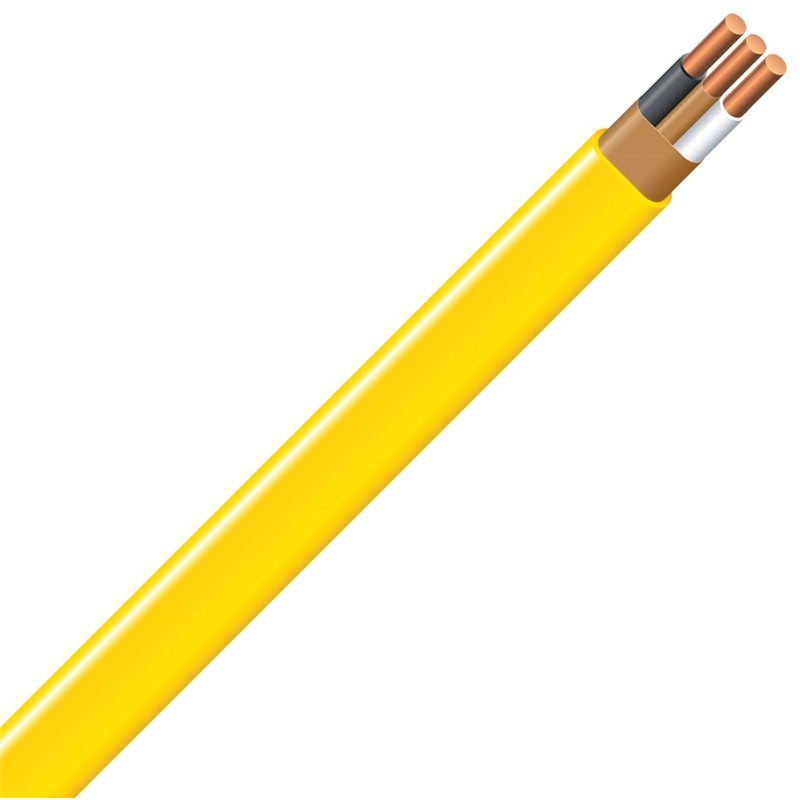

  • Romex 12/2NM-WGX25 Building Wire, 12 AWG Wire, 2 -Conductor, 25 ft L, Copper Conductor, PVC Insulation

Romex

Romex 12/2NM-WGX25 Building Wire, 12 AWG Wire, 2 -Conductor, 25 ft L, Copper Conductor, PVC Insulation

  • Romex 12/2NM-WGX25 Building Wire, 12 AWG Wire, 2 -Conductor, 25 ft L, Copper Conductor, PVC Insulation
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 20 A
  • Length: 25 ft
  • Number of Conductors: 2
  • Model #: 12/2NM-WGX25
  • UPC #: 032886263071
  • SKU: 1054928

Availability

Product Details

Romex Building Wire, NM-B, 12 AWG Wire, 25 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, PVC Conductor Insulation, Nylon Sheath, Yellow Sheath, 600 V, 20 A, 90 deg C Operating

Item Specifications

Conductor Insulation PVC
Conductor Material Copper
Current Rating 20 A
Length 25 ft
Number of Conductors 2
Operating Temperature 90 deg C
Sheath Color Yellow
Sheath Material Nylon
Strands per Conductor 1
Type NM-B
Voltage Rating 600 V
Wire Size 12 AWG
MORE DETAILS:
  • Romex_102702741_Specification_Sheet.pdf
  • Application: For both exposed and concealed work in normally dry locations, primarily use in residential wiring as branch circuits for outlets, switches and other loads
