Arrowhead Brass

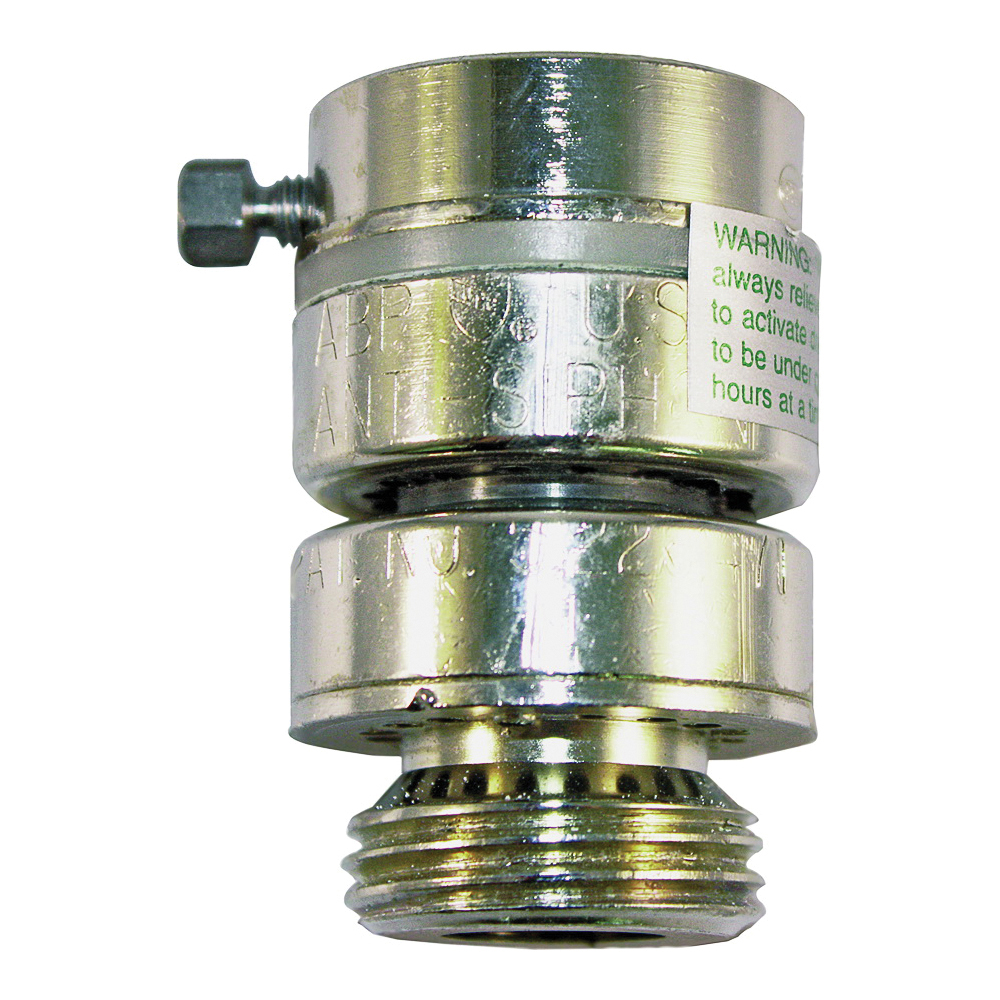

Arrowhead Brass PK1390 Self-Draining Vacuum Breaker, 3/4 in Connection, Fine Thread x MHT, 125 psi Max Pressure, Brass
- Connection Size: 3/4 in
- Connection Type: Fine Thread x MHT
- Finish: Nickel
- Inlet Connection Size: 1-1/16 in
- Material: Brass
- Model #: PK1390
- UPC #: 690043219967
- SKU: 1166017
Product Details
Arrowhead Brass Self-Draining Vacuum Breaker, 3/4 in Connection, Fine Thread x MHT Connection, Inlet Connection Size: 1-1/16 in, Maximum Working Temperature: 140 deg F, Maximum Pressure: 125 psi, Brass, NickelKey Features
- Back-flow prevention that protects your household water supply from contaminated water
- Allows faucet to automatically drain upon shut-off to prevent freezing
- Used for repair of wall hydrants with factory installed back-flow preventer
- Inlet connection: 1-1/16 in fine thread
- Outlet connection - 3/4 in male hose thread (MHT)
- ASSE 1011 certified
- Lead-free certified to NSF/ANSI 372 (by IAPMO)
- Max pressure of 125 psi
- Max temperature of 180 deg F
Item Specifications
| Connection Size | 3/4 in |
|---|---|
| Connection Type | Fine Thread x MHT |
| Finish | Nickel |
| Inlet Connection Size | 1-1/16 in |
| Material | Brass |
|---|---|
| Maximum Pressure | 125 psi |
| Maximum Working Temperature | 140 deg F |
MORE DETAILS:
- Application: For water supplies
- Warranty: 3 Year Limited
