Rain Bird

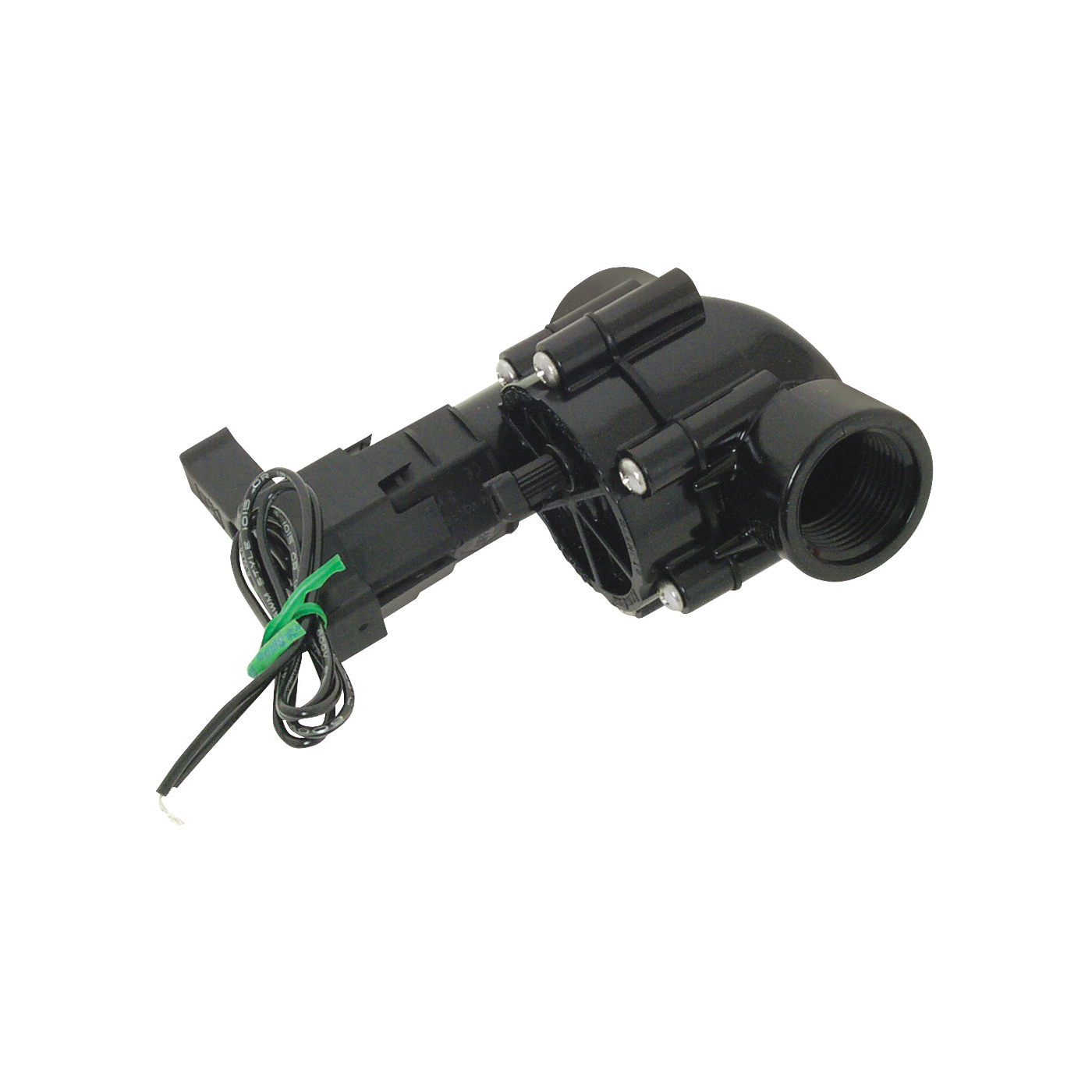

Rain Bird CP100 Irrigation Valve, Plastic Body

  • Body Material: Plastic
  • Diaphragm Material: Buna-N
  • Overall Height: 5 in
  • Overall Length: 3.37 in
  • Overall Width: 4-3/4 in
  • Model #: CP100
  • UPC #: 077985610005
  • SKU: 1039232



Product Details

Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.

Item Specifications

Body Material Plastic
Diaphragm Material Buna-N
Overall Height 5 in
Overall Length 3.37 in
Overall Width 4-3/4 in
Pressure Rating 15 to150 psi
Valve Size 1 in
  • Application: For below ground with a separate constant pressure backflow prevention device
