Jandorf

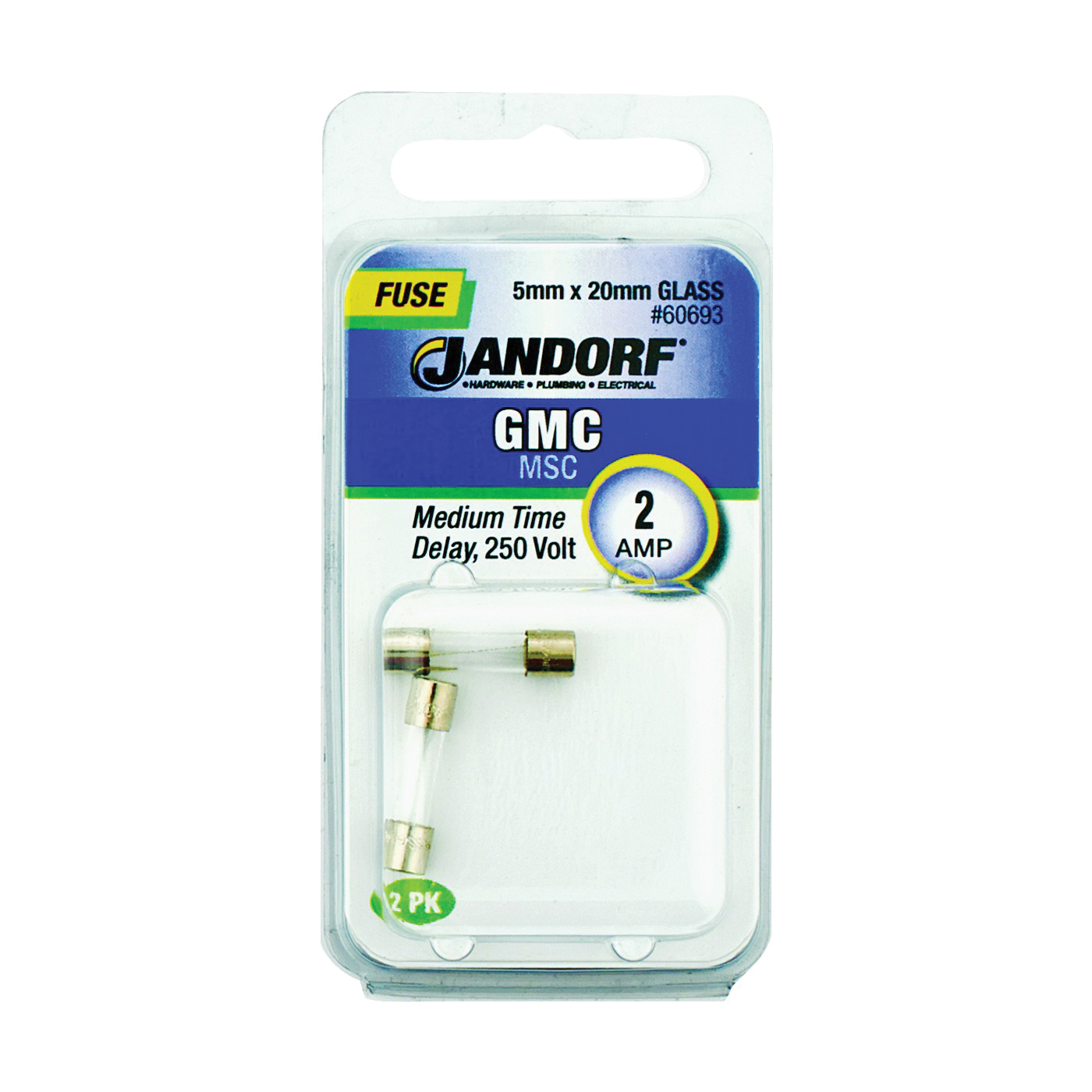

JANDORF GMC Series 60693 Time Delay Fuse, 2 A, 250 V, 100 A, 10 kA Interrupt, Glass Body, Medium Time Delay Fuse
- Body Material: Glass
- Current Rating: 2 A
- Diameter: 5 mm
- Element Type: Single
- Fuse Type: Medium Time Delay
- Model #: 60693
- UPC #: 740265606936
- SKU: 1315084
Product Details
JANDORF GMC Medium Time Delay Fuse, 250 V, 2 A, Resistance: 0.04 Ohm, Interrupt Rating: 100 A, 10 kA, Fuse Type: Medium Time Delay, Element Type: Single, Rejection/Non-Rejection: Non-Rejection, Terminal Type: Ferrule, Body Material: Glass, 5 mm Dia, 20 mm LKey Features
- Series GMC, 5 x 20 mm glass tube
Item Specifications
| Body Material | Glass |
|---|---|
| Current Rating | 2 A |
| Diameter | 5 mm |
| Element Type | Single |
| Fuse Type | Medium Time Delay |
| Interrupt Rating | 100 A, 10 kA |
| Length | 20 mm |
|---|---|
| Rejection/Non-Rejection | Non-Rejection |
| Resistance | 0.04 Ohm |
| Terminal Type | Ferrule |
| Type | Medium |
| Voltage Rating | 250 V |
MORE DETAILS:
- Application: For electronic circuits
