Gardner Bender

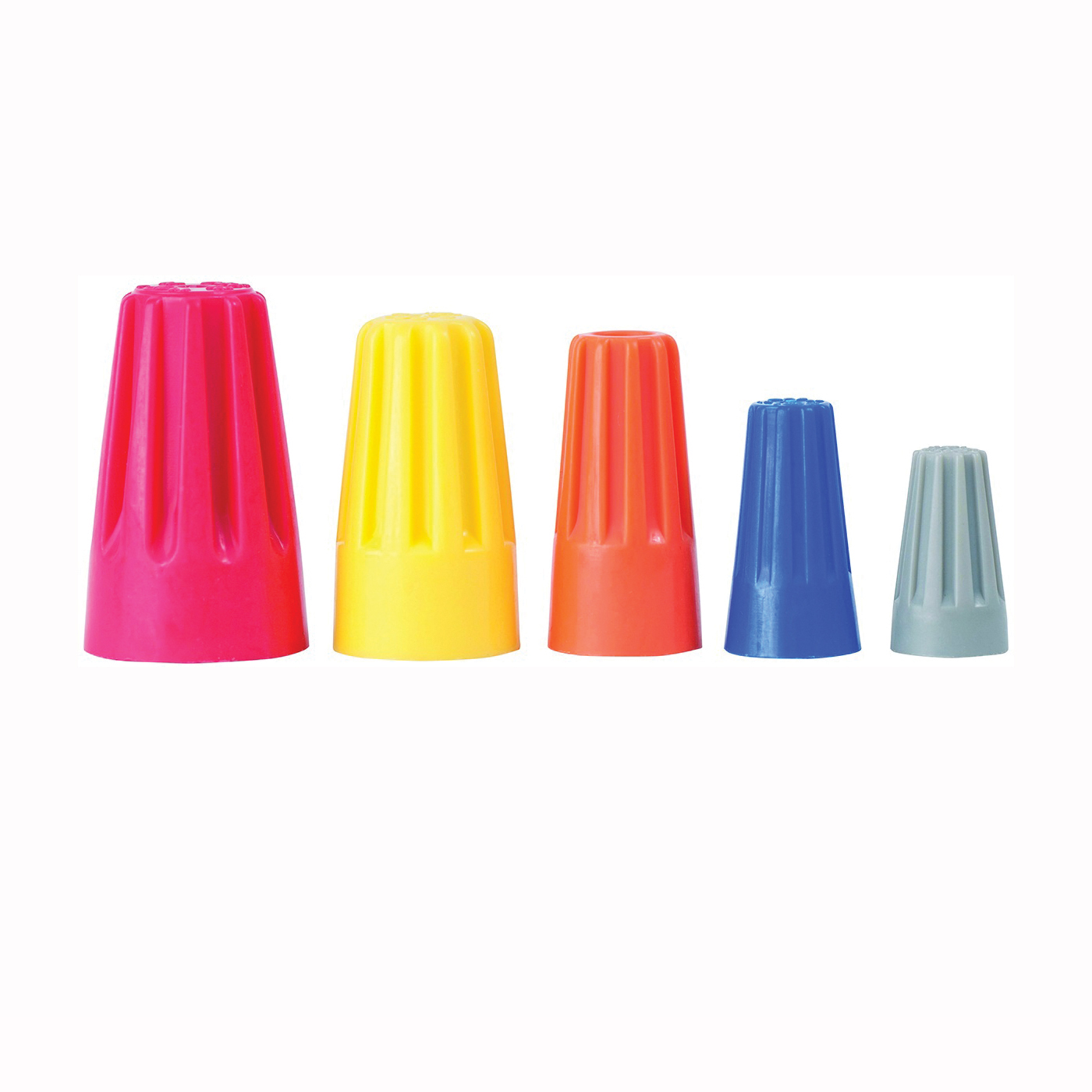

Gardner Bender 25-AWC Wire Connector Kit, 25/BAG
- Dimensions: 3-3/4 in L x 1/10 in W x 8-1/4 in H
- Includes: (3) Small Gray, (4) Small Blue, (6) Orange, (6) Yellow and (2) Red Wires
- Voltage Rating: 600 V
- Model #: 25-AWC
- UPC #: 032076013059
- SKU: 1034331
Product Details
Wiregard twist on wire connectors are designed for general-purpose applications requiring the connection of 2 or more copper wires. Wiregard connectors feature a straight type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull-out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions.Key Features
- Designed to require fewer turns to reach required torque and meet or exceed UL pull-out and dielectric test requirements
- Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- 1000 V max in lighting, fixtures or luminaries and signs
- Copper to copper connections only
Item Specifications
| Dimensions | 3-3/4 in L x 1/10 in W x 8-1/4 in H |
|---|---|
| Includes | (3) Small Gray, (4) Small Blue, (6) Orange, (6) Yellow and (2) Red Wires |
| Voltage Rating | 600 V |
|---|
MORE DETAILS:
- Warranty: 1 Year
