National Hardware

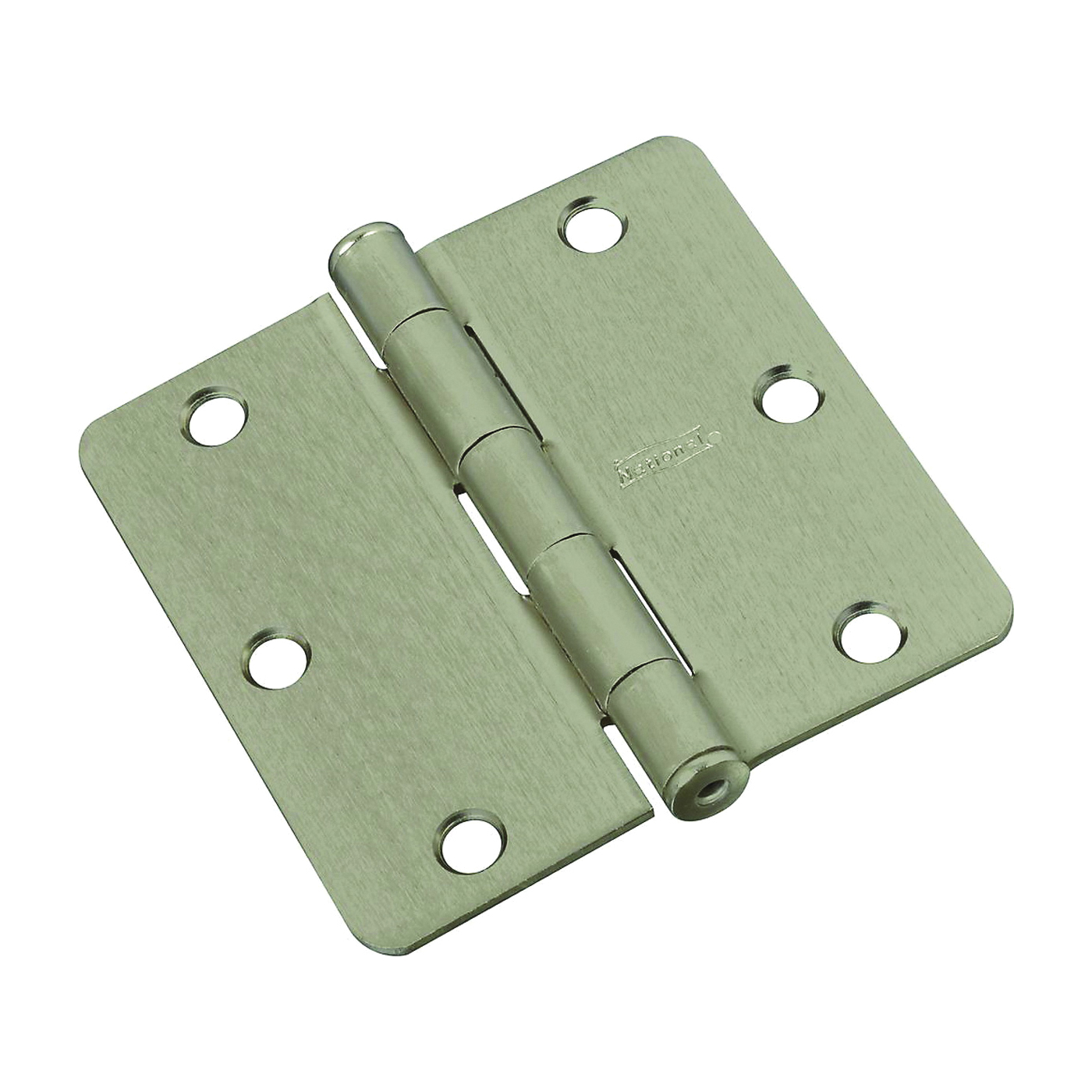

National Hardware N830-245 Door Hinge, Steel, Satin Nickel, Non-Rising, Removable Pin, Full-Mortise Mounting, 50 lb
- Corner Radius: 1/4 in
- Dimensions: 3-1/2 in L x 3-1/2 in W
- Door Leaf Height: 3-1/2 in
- Finish: Satin Nickel
- Includes: (5) Knuckles and Screws
- Model #: N830-245
- UPC #: 886780009859
- SKU: 1270157
Product Details
Heavy-gauge cold rolled steel for added strength. Nib on hinge for finished appearance. Five knuckle, full mortise design. Screw holes are countersunk. Removable pin for easier installation.Key Features
- Flush pin for finished appearance
- 1/4 in radius round corners
- Countersunk screw holes with fasteners included
- Removable pin for easy installation and removal
Item Specifications
| Corner Radius | 1/4 in |
|---|---|
| Dimensions | 3-1/2 in L x 3-1/2 in W |
| Door Leaf Height | 3-1/2 in |
| Finish | Satin Nickel |
| Includes | (5) Knuckles and Screws |
| Material | Steel |
| Mounting Type | Full-Mortise |
|---|---|
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Type | Non-Rising, Removable |
| Weight Capacity | 50 lb |
MORE DETAILS:
- Application: For indoor applications
- Warranty: Limited Lifetime
