Cutler-Hammer

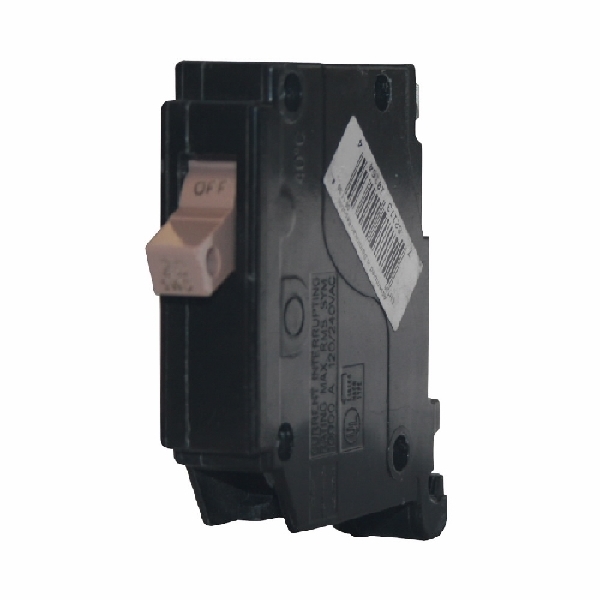

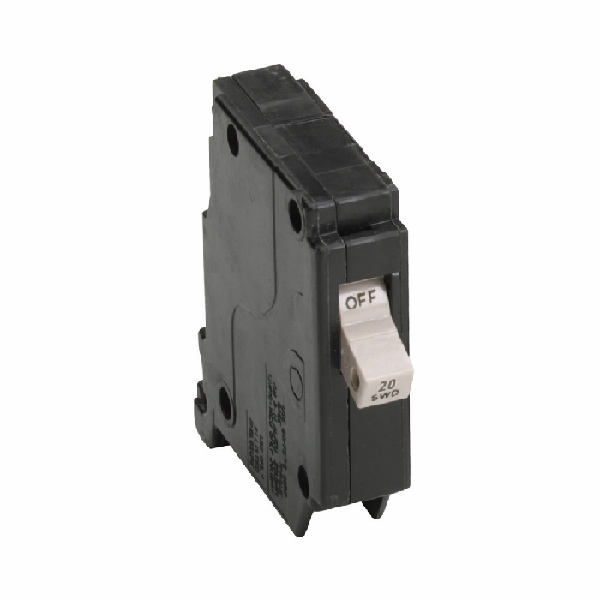

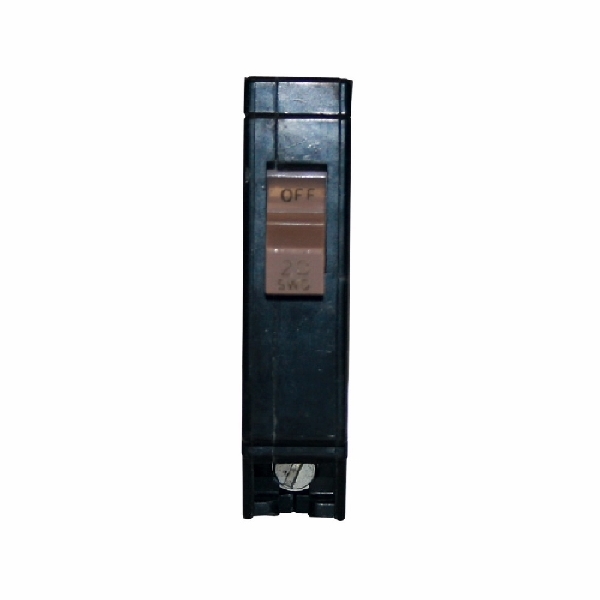

Cutler-Hammer CH Series CH120 Circuit Breaker, 20 A, 1-Pole, 120/240 V, Plug
- Actuator Type: Magnetic, Thermal
- Current Rating: 20 A
- Dimensions: 3-1/2 in L x 5 in W x 3 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Model #: CH120
- UPC #: 782113101644
- SKU: 1115895
Product Details
Eaton has enhanced its premium type CH residential circuit breakers, making the excellent even better. The type CHF AFCI breakers also include advanced electronics that reduce nuisance tripping and a standard diagnostic LED indicating one of seven trip codes. These features further establish the CH Series of products as Excellent-in-class.Key Features
- Tri-drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
- Space saving 3/4 in design accommodates more breakers per panel
Item Specifications
| Actuator Type | Magnetic, Thermal |
|---|---|
| Current Rating | 20 A |
| Dimensions | 3-1/2 in L x 5 in W x 3 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
|---|---|
| Operating Temperature | 60 to 75 deg C |
| Suitable for | Type CH Load Center |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 8, 14 to 10 AWG |
MORE DETAILS:
- Cutler_Hammer_100028882_Instruction_Installation_Manual.pdf
- Cutler_Hammer_101878128_Specification_Sheet.pdf
- Cutler_Hammer_100045817_Catalog.pdf
- Application: For use with light commercial distribution panels, light commercial distribution panels, meter breaker panels, pool panels, residential load centers
