Tru-Flate

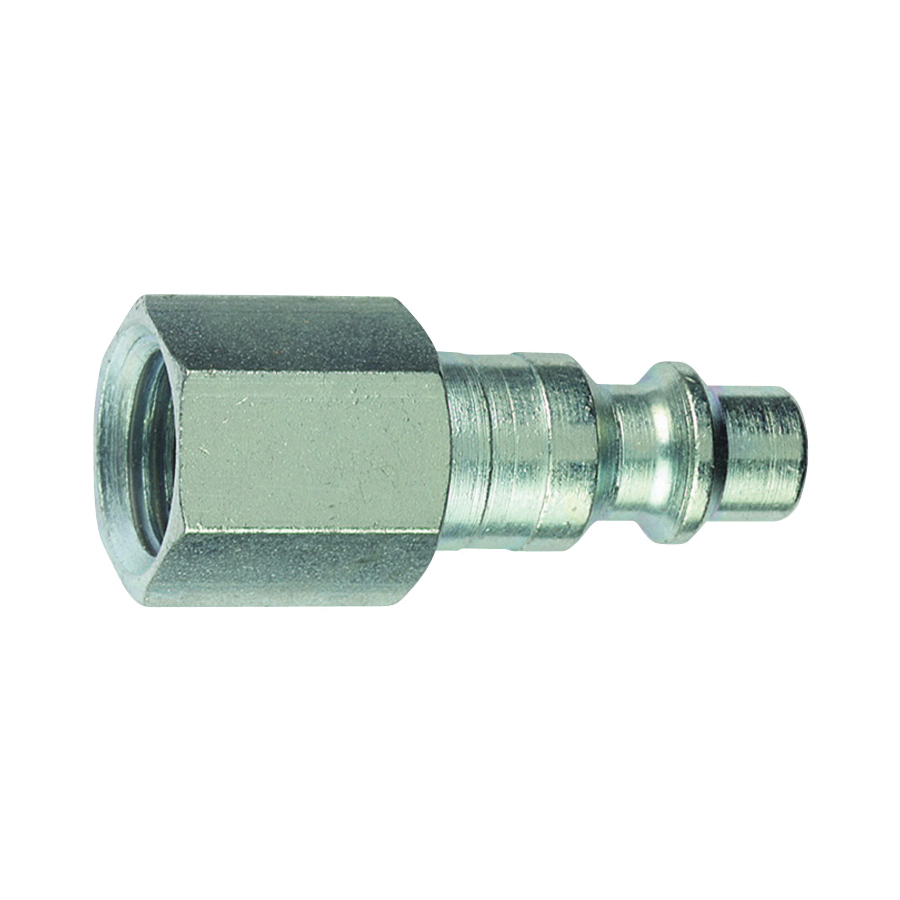

Tru-Flate 12-235 Plug, 1/4 in, FNPT, Steel
![Tru-Flate 12-235 Plug, 1/4 in, FNPT, Steel](https://assets.unilogcorp.com/187/ITEM/IMG/6275747.jpg)
- Connection Type: FNPT
- Material: Steel
- Nominal Size: 1/4 in
- Pressure Rating: 300 psi
- Type: I/M-Style
- Model #: 12-235
- UPC #: 028893122357
- SKU: 1033760
Product Details
Adopted by most coupler manufacturers, this plug design is considered the industrial standard. It can be identified by the 3/16 in pilot and flat bottom V-shaped ball groove. Conforms to ANSI (NFPA) T3.20.14-1990 dimensions.Item Specifications
Connection Type | FNPT |
---|---|
Material | Steel |
Nominal Size | 1/4 in |
Pressure Rating | 300 psi |
---|---|
Type | I/M-Style |
MORE DETAILS:
- Tru_Flate_100017959_Catalog.pdf
- Application: For compressed air lines
