ProSource

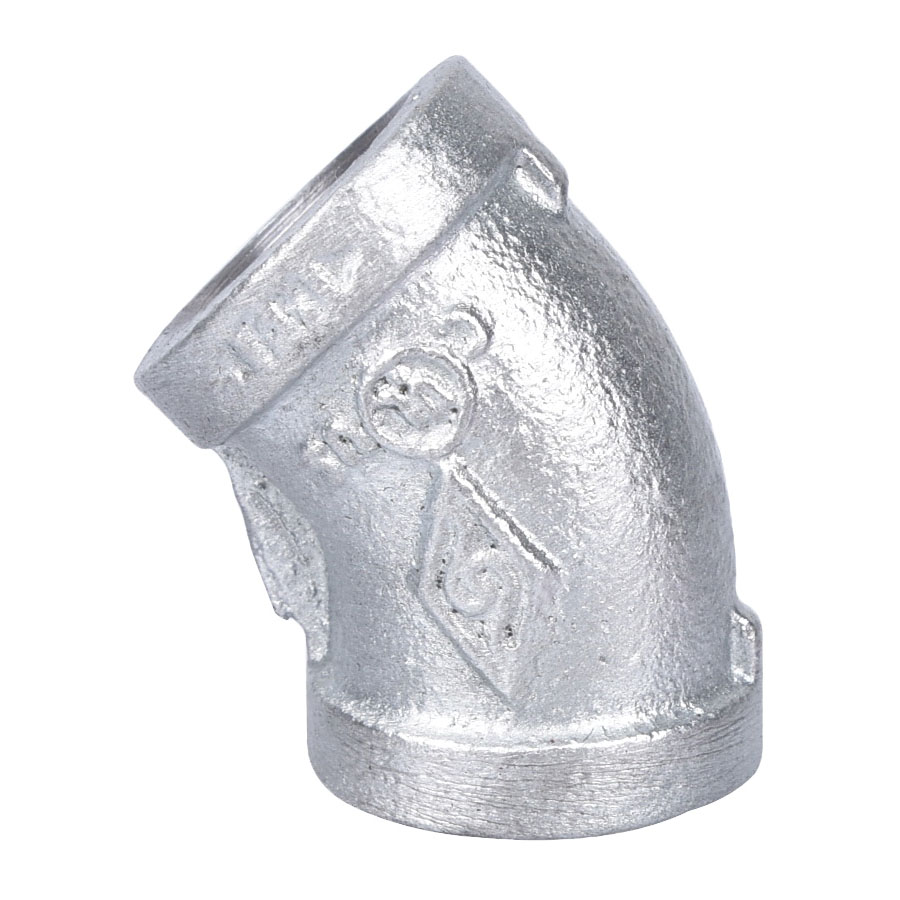

ProSource 4-1/2G Pipe Elbow, 1/2 in, Threaded, 45 deg Angle, 40 Schedule, 300 psi Pressure
- Angle: 45 deg
- Connection Type: Threaded
- Nominal Size: 1/2 in
- Operating Temperature: -4 to 572 deg F
- Pressure Rating: 300 psi
- Model #: 4-1/2G
- UPC #: 045734101111
- SKU: 1115561
Product Details
This galvanized 45 degree elbow is used to change direction in piping. It's suitable for use with water or steam. Flat banded, right hand threads.Key Features
- Galvanized finish
- UL and FM certified
- Meets ASTM and ASME standards
- 150 class malleable steel
- 45 deg street elbow with female to male threaded connects
- Changing the direction of piping by 45 deg
Item Specifications
| Angle | 45 deg |
|---|---|
| Connection Type | Threaded |
| Nominal Size | 1/2 in |
| Operating Temperature | -4 to 572 deg F |
| Pressure Rating | 300 psi |
|---|---|
| Schedule Rating | 40 |
| Wall Thickness | 0.1 in |
MORE DETAILS:
- Application: For changing direction in piping system
