Merrill

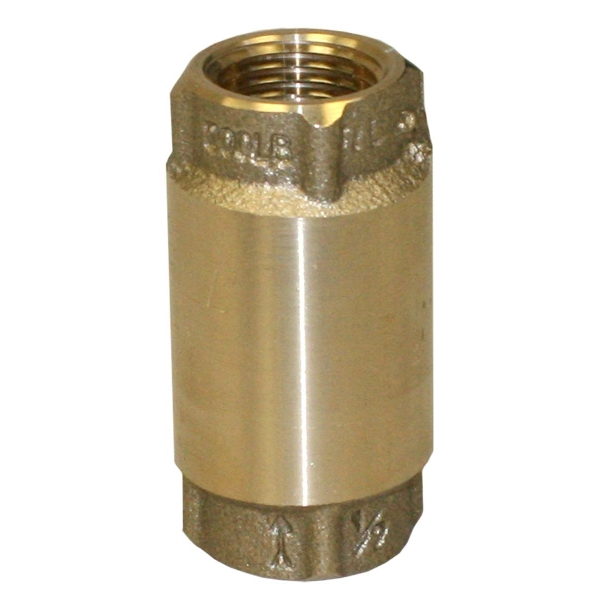

Merrill 700 Series CVNL50 Check Valve, 1/2 in, FIP, 200 psi Pressure, Brass Body
- Body Material: Brass
- Connection Type: FIP
- Length: 2.36 in
- Media: Gas, Oil, Water
- Nominal Size: 1/2 in
- Model #: CVNL50
- UPC #: 642367077136
- SKU: 1187615
Product Details
Merrill 700 Check Valve, Nominal Size: 1/2 in, FIP Connection, Media: Gas, Oil, Water, 2.36 in L, 1-1/4 in W, Body Material: Brass, 200 psi, Temperature Rating: 190 deg FItem Specifications
| Body Material | Brass |
|---|---|
| Connection Type | FIP |
| Length | 2.36 in |
| Media | Gas, Oil, Water |
| Nominal Size | 1/2 in |
|---|---|
| Pressure Rating | 200 psi |
| Temperature Rating | 190 deg F |
| Width | 1-1/4 in |
MORE DETAILS:
- Merrill_101629606_Catalog.pdf
- Merrill_101629606_Specification_Sheet.pdf
- Application: For allowing flow in one direction only
