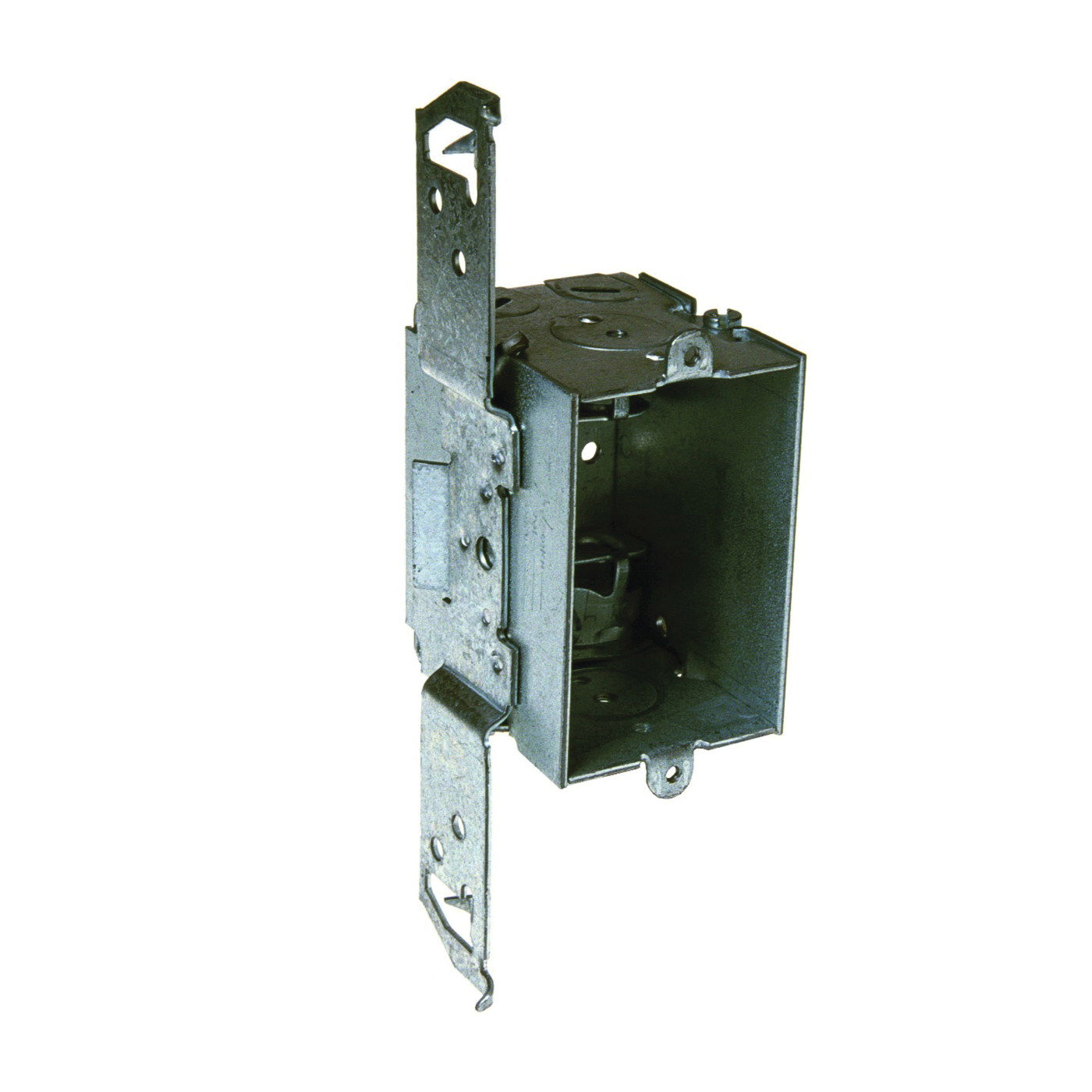

Raco 8524 Switch Box, 1-Gang, 3-Knockout, Steel, Aqua/Red, Bracket

Raco

Cable Entry: Knockout
Color: Aqua/Red
Cubic Capacity: 12-1/2 cu-in
Dimensions: 2.5 in L x 7 in W x 2.2 in H
Includes: TS Side-Mount Bracket with Gauging Tabs and Recessed Nailing Spurs
Model #: 8524
UPC #: 050169005248
SKU: 1054334

Availability

Product Details

One 1/2 in bottom and two 1/2 in end conduit knockouts and four cable knockouts. With armored cable/metal clad/flex clamps. TS brackets for wood or metal studs, with 1/2 in setback. Gauging tabs and recessed nailing spur, less ears. Acceptable for use in 2 hrs rated walls. 2-1/2 in D. 12.5 cu-in. UL listed. UPC bar coded.

Item Specifications

Cable Entry	Knockout
Color	Aqua/Red
Cubic Capacity	12-1/2 cu-in
Dimensions	2.5 in L x 7 in W x 2.2 in H
Includes	TS Side-Mount Bracket with Gauging Tabs and Recessed Nailing Spurs

Material	Steel
Mounting Type	Bracket
Number of Gangs	1
Number of Knockouts	3

MORE DETAILS:

RACO_100069349_Specification_Sheet.pdf
RACO_100009681_SDS.pdf

WARNING: California Residents see Prop 65 Warnings
