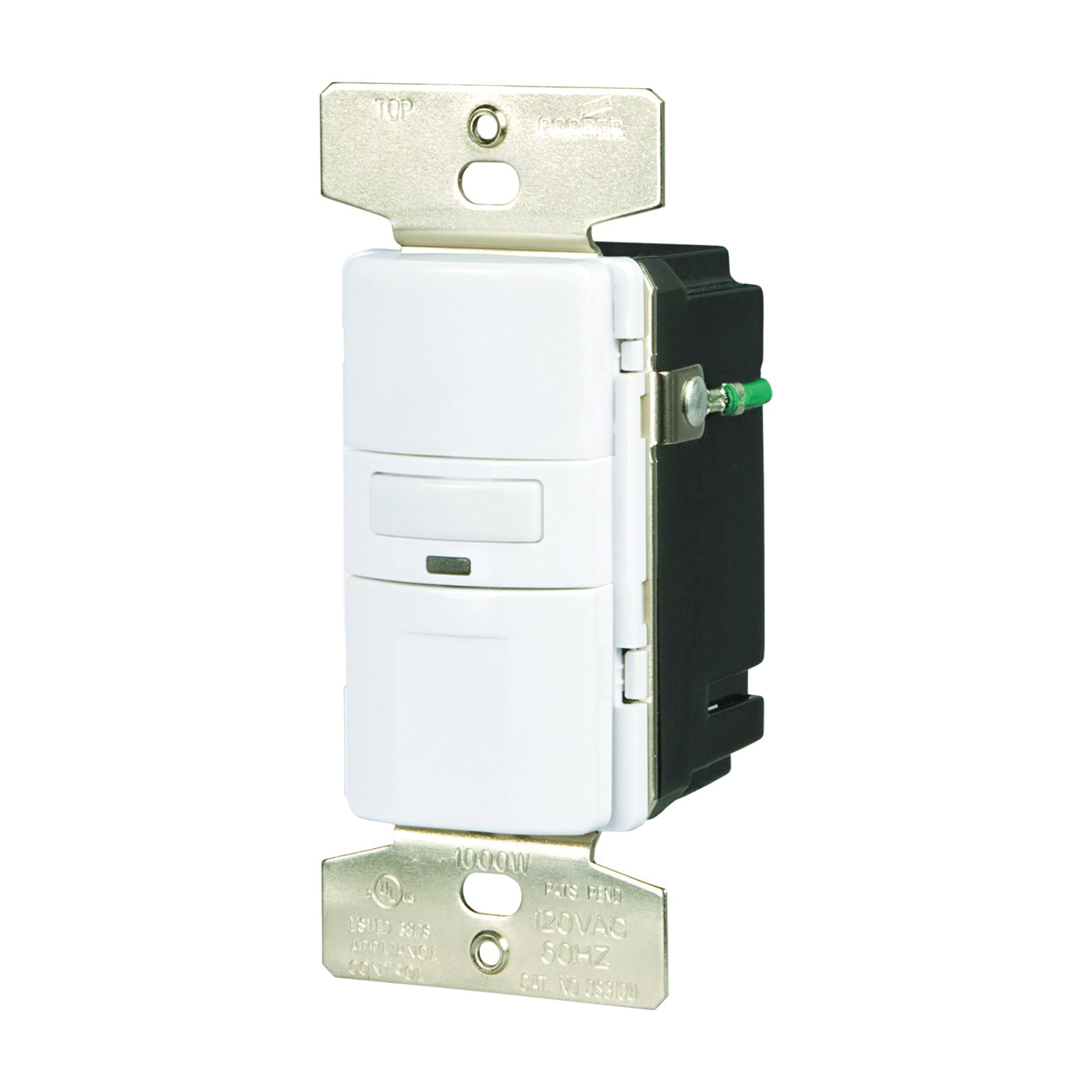

Eaton Wiring Devices OS310U-W-K Motion Sensor Switch with Nightlight and LED, 8.3 A, 120 V, 1 -Pole, Motion Sensor
- Color: White
- Connection Type: Wire
- Current Rating: 8.3 A
- Frequency Rating: 60 Hz
- Includes: Mid-Size Decorator Wallplate
- Model #: OS310U-W-K
- UPC #: 032664747731
- SKU: 1012984
Product Details
Occupancy/vacancy sensor switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-On/Off or manual-On/auto-Off operation while vacancy sensors provide Manual-On/Auto-Off operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide 1-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.Item Specifications
| Color | White |
|---|---|
| Connection Type | Wire |
| Current Rating | 8.3 A |
| Frequency Rating | 60 Hz |
| Includes | Mid-Size Decorator Wallplate |
| Lamp Type | CFL, Fluorescent, Halogen, Incandescent, LED |
| Material | Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 1 |
|---|---|
| Sensing Angle | 180 deg |
| Sensing Range | 1000 sq-ft |
| Sensor Type | Motion |
| Temperature Rating | 0 to 40 deg C |
| Timer Range | 30 s to 30 min |
| Voltage Rating | 120 V |
| Wattage Rating | 600 W |
