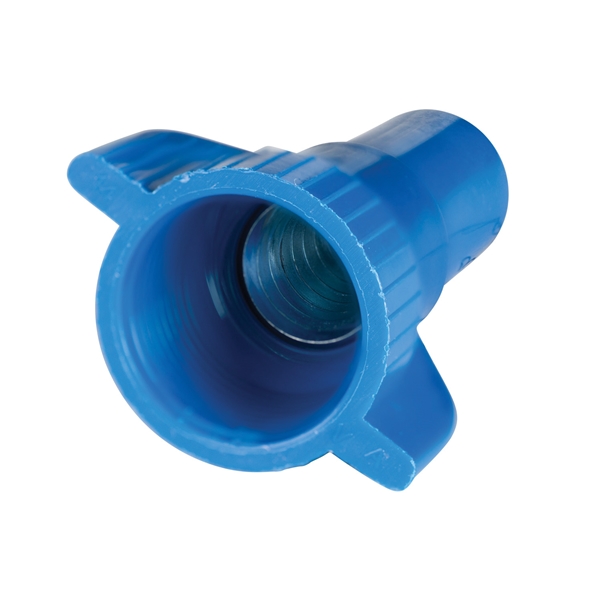

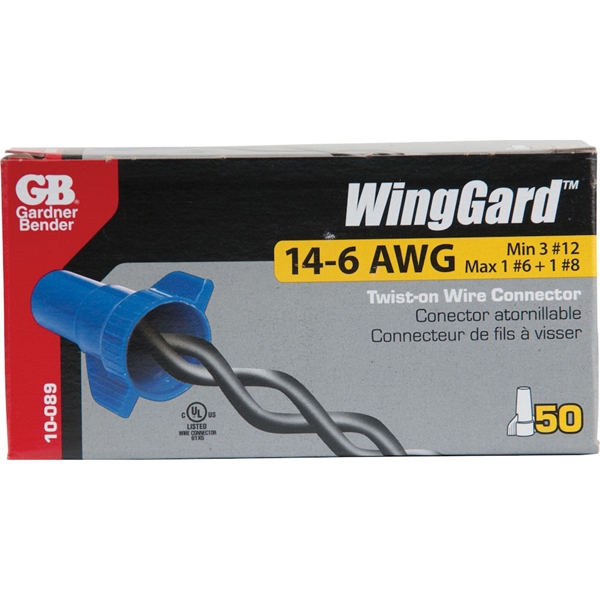

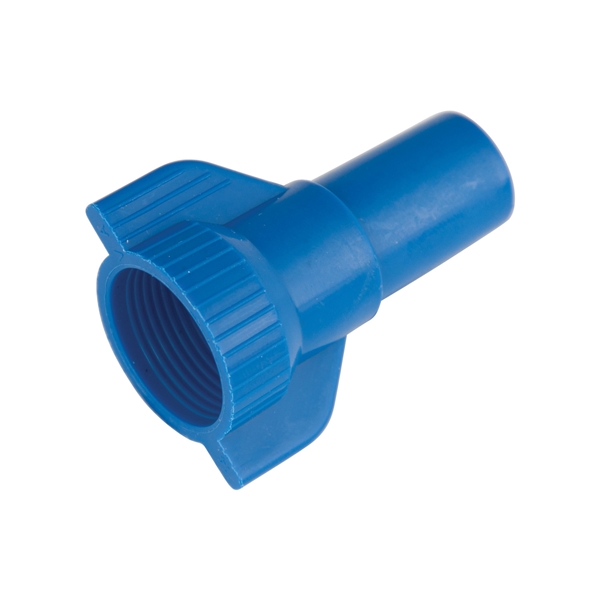

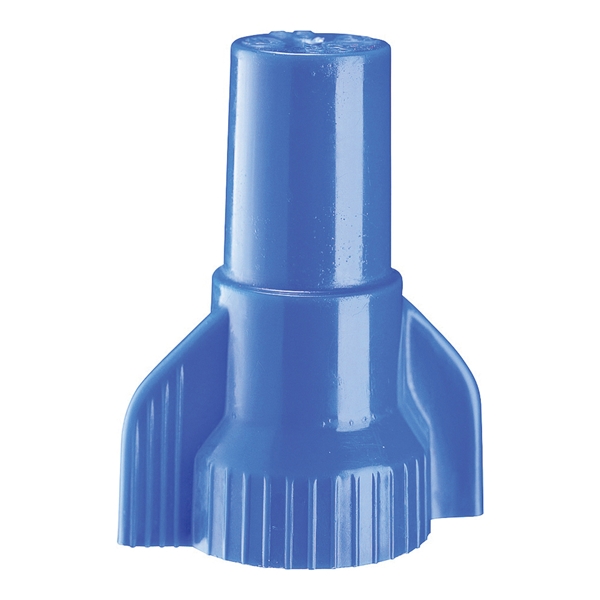

Gardner Bender WingGard 89 10-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Polypropylene Housing Material, 50/CT

Gardner Bender

Gardner Bender WingGard 89 10-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Polypropylene Housing Material, 50/CT

Gardner Bender WingGard 89 10-089 Wire Connector, 14 to 6 AWG Wire, Steel Contact, Polypropylene Housing Material, 50/CT
  • Color: Blue
  • Contact Coating: Zinc
  • Contact Material: Steel
  • Housing Material: Polypropylene
  • Length: 1-1/2 in
  • Model #: 10-089
  • UPC #: 032076100896
  • SKU: 1114006

Availability

Product Details

GB's WingGard™ twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

Item Specifications

ColorBlue
Contact CoatingZinc
Contact MaterialSteel
Housing MaterialPolypropylene
Length1-1/2 in
Mounting TypeScrew
Voltage Rating300/600 V
Width1-1/4 in
Wire Size14 to 6 AWG
MORE DETAILS:
  • Warranty: 1 Year
